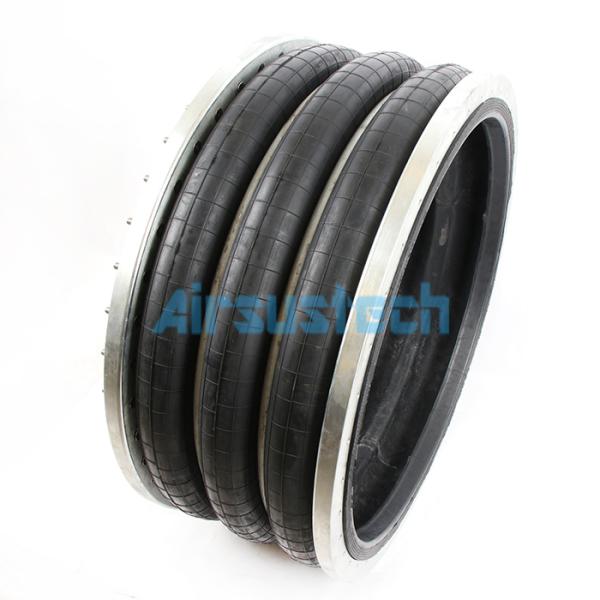

Continental Contitech FT 1710-38 Triple Convoluted Rubber Air Spring with Flange
Product Dimensions
| Dimensions - Compressed Height | 114 MM |
| Dimensions - Max. Extended Height | 470 MM |
| Dimensions - Center to Center Distance | 482 MM |
| Dimensions - Flange Diameter | 517 MM |
| Dimensions - Max. Outer Diameter | 600 MM |
| Dimensions - Installation Space Needed | 650 MM |
| Screw Nuts Type | 24-M10 |
| Bellow Type | Triple Convolutions |
| Operation | Gas-filled |
Product Technical Parameters
Pneumatic application - static characteristic values
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[l] |
| Height H [mm] | 390 | 45.3 | 61.8 | 77.3 | 93.3 | 110 | 125 | 74 |
| 350 | 51.3 | 689 | 85.3 | 103 | 121 | 139 | 67 |
| 310 | 56.5 | 74 | 92.3 | 111 | 130 | 149 | 60 |
| 270 | 59.8 | 78.7 | 98.1 | 118 | 138 | 158 | 52 |
| 230 | 61.1 | 82.6 | 103 | 123 | 144 | 165 | 44 |
| 190 | 63.9 | 86.2 | 108 | 129 | 151 | 172 | 36 |
| 150 | 67.5 | 90.4 | 113 | 135 | 159 | 182 | 27 |
Other OEM Numbers
Continental Contitech: FT 1710-38 / FT1710-38
Continental Contitech: FT 171038 / FT171038
Continental Contitech: FT 1710 38 / FT1710 38
Firestone Part Number: W01-358-0987 / WO1-358-0987
Firestone Part Number: W013580987 / WO13580987
Firestone Part Number: W01 358 0987 / WO1 358 0987
Firestone Air Spring: W01-358-7276 / WO1-358-7276
Firestone Air Spring: W013587276 / WO13587276
Firestone Air Spring: W01 358 7276 / WO1 358 7276
How to Properly Install and Use Air Springs?
- Install the rubber airbag piston rod downward to minimize friction and optimize damping and buffering performance.
- Proper fulcrum positioning ensures normal operation. Align the airbag with the structure’s centerline when closed to prevent unintended door opening.
- Avoid bending or lateral forces during use. Do not repurpose the airbag as a guardrail.
- Maintain piston rod integrity for sealing reliability. Do not damage, paint, or apply chemicals. Install before surface treatments like spraying.
- Rubber airbags are high-pressure components—never disassemble, heat, or crush them.
- The piston rod must not rotate left. Adjust joints only by turning right.
- Operating temperature: -40℃ to +70℃.
- Ensure flexible, smooth connection points without obstruction.
Other Convoluted Air Rubber Bellows
| Part Number | Max. Diameter (mm) | Max. Stroke (mm) | Min.Height (kN) | Max. Stroke (kN) | Thread N×G |
| Force with p = 8 bar |
| FS 310-12 RI | 320 | - | - | - | 12×M8 |
| FS 960-12 RS | 442 | 124 | 104 | 31.3 | 18×M10 |
| FS 1330-11 RS | 530 | 114 | 142.4 | 66.1 | 24×M10 |
| FS 1710-12 RS | 580 | 126 | 182.5 | 61.4 | 24×M10 |
| FS 2870-16 RS | 715 | 164 | 298 | 81 | 32×M10 |
| FS 5450-16 RS | 950 | 151 | 437 | 200.9 | 32×M10 |
| Part Number | Max. Diameter (mm) | Max. Stroke (mm) | Min.Height (kN) | Max. Stroke (kN) | Thread N×G |
| Force with p = 8 bar |
| FD 330-30 RI | 340 | - | - | - | 10×M8 |
| FD 960-22 RS | 444 | 226 | 106.3 | 21.8 | 18×M10 |
| FD 1120-30 RI | 510 | 315 | 120 | 25.7 | 16×M8 |
| FD 1330-25 RS | 518 | 246 | 144.2 | 50.7 | 24×M10 |
| FD 1710-25 RS | 577 | 251 | 185.4 | 48 | 24×M10 |
| FD 1730-40 RI | 610 | 400 | 161.1 | 54.1 | 16×M16 |
| FD 1730-50 RI | - | - | - | - | 16×M16 |
| FD 2380-24 RS | 660 | 231 | 241.3 | 80.3 | 24×M10 |
| FD 2470-40 RI | 710 | 400 | 246 | 117 | 16×M16 |
| FD 2870-30 RS | 709 | 271 | 276.6 | 87.8 | 32×M10 |
| FD 5450-28 RS | 950 | 283 | 515.5 | 206.1 | 40×M10 |
| Part Number | Max. Diameter (mm) | Max. Stroke (mm) | Min.Height (kN) | Max. Stroke (kN) | Thread N×G |
| Force with p = 8 bar |
| FT 530-35 RI M8 | 405 | 384 (324) | 120 | | 16×M8 |
| FT 960-34 RS | 462 | 336 | 109 | 29.5 | 18×M10 |
| FT 1330-35 RS | 521 | 356 | 115.6 | 38 | 24×M10 |
| FT 1710-38 RS | 580 | 356 | 149.1 | 61.8 | 24×M10 |
| FT 2870-45 RS | 720 | 455 | 231 | 46.2 | 32×M10 |
| FT 5450-44 RS | 950 | 440 | 448 | 281.1 | 40×M10 |
