Industrial Single Convoluted Air Spring Assembly by Firestone W01-358-7605 3/4NPT
Product Description

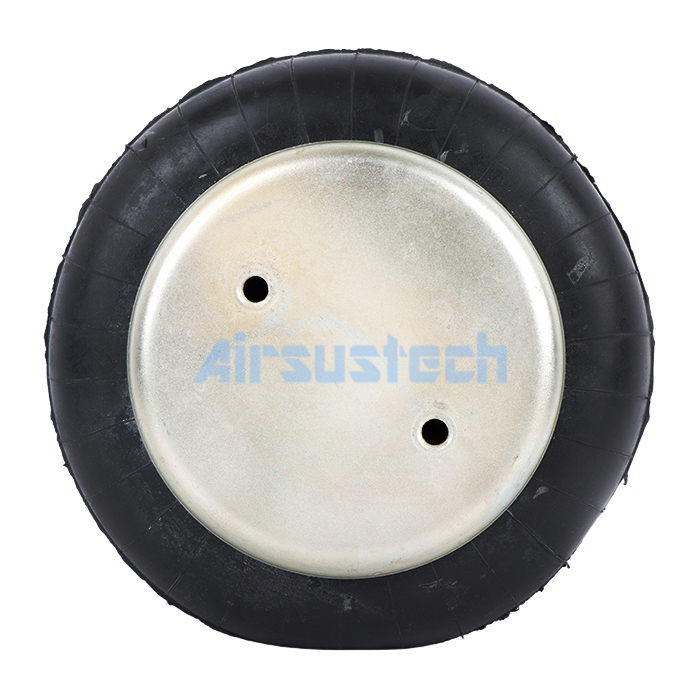

AIRSUSTECH 1B8×6 single convolution air actuator, compatible with Firestone W01-358-7605, featuring 3/4 NPT. It can be used in various industrial fields, such as sawmill machinery, agricultural machinery, textile looms, and large drying machines. The AIRSUSTECH 1B8×6 model offers excellent shock absorption, and its height can be adjusted by controlling the air pressure. The use of AIRSUSTECH pneumatic air springs can extend equipment service life and effectively reduce noise.
AIRSUSTECH 1B8×6 Air Bag VS. Firestone W01-358-7605 Air Spring
| Model Number | 1B8×6 | W01-358-7605 |
| Port size | 1/4-18NPT | 1/4NPT |
| Threaded hole | 2×3/8-16UNC | 2×3/8-16UNC |
| Design height | 157 mm | 5.5 inches |
| Center distance | 70 mm | 2.75 inches |
| Cover plate width | 135 mm | 5.31 inches |
| Max. outer diameter | 240 mm | 9.6 inches |
Alternative Items
AIRSUSTECH 1B8×6 3/4NPT
Firestone W01-358-7605 3/4NPT
Firestone W013587605 3/4NPT
Firestone W01 358 7605 3/4NPT
Firestone W01-358-7598 1/4NPT
Firestone W013587598 1/4NPT
Firestone W01 358 7598 1/4NPT
Goodyear 1B8-580
Goodyear 1B8580
Goodyear 1B8 580
Advantages of AIRSUSTECH Production Equipments
- A Complete Production Capablity and Special Testing Facilities.
- German import WP GK-200A model of mixing machine and rubber mixing line.
- Italy technology and independent design improved cord breaking and bead wire production workishop.
- Air spring forming workshop.
- Air spring vulcanizing workshop.
- Pieces of metal processing workshop.
- Air spring crimping workshop.
- A first-class production technology and scientific production workshop, is to ensure that my company first-class product them in conditions.
