Holland 90557226 Air Spring Assembly Cross Goodyear 1B12-300/313 3/8 UNC Threaded Hole
Product Description:
The AIRSUSTECH Air Springs are air shocks designed to provide superior quality, durability and load capacity for a range of automotive applications. Made with high-grade rubber and steel, they are engineered to provide superior performance in temperatures ranging from -40℃ to +70℃. With their superior load capacity and durability, these air shocks are ideal for vehicles of all sizes, shapes and types. They are designed to provide superior shock absorption and stability, resulting in a smoother and safer ride. In addition, they are easy to install and require minimal maintenance, making them a great choice for any vehicle.
Specifications and Detailed Technical Parameters: 1B5330
| Top plate screw (nut) teeth | 2X3/8-16UNC |
| The screw center distance of the top cover plate | 157.5 mm |
| Screw (nut) teeth of the bottom cover plate | 2X3/8-16UNC |
| The screw center distance of the bottom cover plate | 157.5 mm |
| Air hole/air inlet | 1/4 NPTF |
| The distance between the screw center and air fittings | 73 mm |
| Top plate width | 231 mm |
| Diameter of the bottom cover | 231 mm |
| MAX. Rubber Bellow Diameter | 325 mm |
| Stroke | Minimum 231 mm to Maximum 325 mm |
Cross References:
| Holland | 90557226 |
| Triangle | 6374/4474 |
| Goodyear | 1B12-300/313, 1B12 300/313, 1B12300/313 |
| Firestone | W01-358-7008, W01 358 7008, W013587008 WO1-358-7008, WO13587008, WO1 358 7008 |
| Contitech | FS 330-11 474, FS330-11 474, FS330-11474 FS 330 11 474, FS330 11 474, FS33011 474 FS330-11 474, FS330 11474, FS33011474 |
Maintenance and inspection:
To ensure safe use, be sure to carry out daily inspections. If any abnormality is found during inspection, replace with a new one.
1. Please confirm that the upper and lower panels and waist rings are properly placed. In particular, if pressure is applied to the waist ring in a state of displacement and detachment, the air spring may rupture.
2. If foreign matter, oil, or chemicals are stained on the air spring, be sure to remove them.
3. If lubricating oil is mixed into the air spring bladder, please clean it at any time and clean the rubber bladder with water regularly.
4. Please confirm that the supply pressure is appropriate. In particular, abnormal phenomena are prone to occur in the pipes, which should not be ignored.
Please send us your request by e-mail, so we can send you our offer with competitive prices and delivery time for AIRSUSTECH 1B5330 Bellows Style Industrial Air Spring number or any other model you need. We can offer competitive price, and delivery time.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

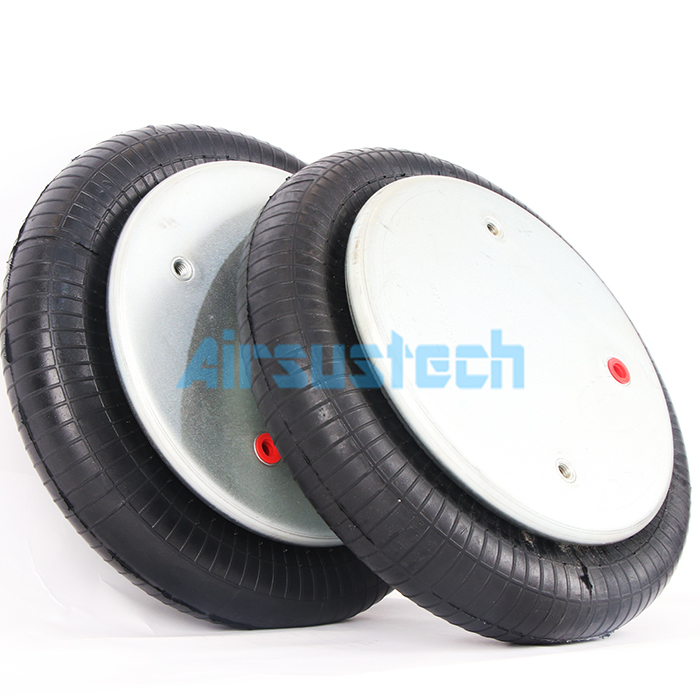

The Related Pictures of 1B5330:
