Contitech FD 331-26 541 Double Convoluted Rubber Pneumatic Parts AIRSUSTECH Air Ride Springs
OEM NO.
Contitech:FD331-26 541
Contitech:FD331 26 541
Contitech:FD 331-26 541
Contitech:FD 331 26 541
Continental: FD 331-26 541
Firestone:W01-358-7550
Firestone:W01 358 7550
Firestone:W013587550
Firestone:WO1-358-7550
Firestone:WO1 358 7550
Firestone:WO13587550
Goodyear:2B12-346
Goodyear:2B12 346
Goodyear:2B12-440
Goodyear:2B12 440
Goodyear:578923315
Triangle:6375
Triangle:4480
Watson&Chalin : AS-0087
Histeer :10315
2B7550 specifications and Tecnical Data
1. Nut/blind nut Top plate screw (nut) teeth: 1/2-13UNC; 3/4-16UNC
Top plate screw center distance : 157mm
2. Bottom cover plate screw (nut) teeth: 2 x 3/8-16UNC
Bottom plate screw center distance : 157 mm
2. Air hole/air inlet/air fitting air hole/air inlet: 1/4-18NPT
The Screw is combined with the Air Inlet
3. Top plate diameter (width): 224.5mm, bottom cover diameter (width): 224.5 mm
4. Rubber bellows Max. diameter: 343mm
5. Min height: 104mm
Max. height: 363mm
6. Bumper block/bumper block with bumper
7. Belt loop/Girdle ring/girdle hoop: with one piece of belt loop/girdle hoop/girdle ring
Min. pressure: 0 bar
Return force to min.height: ≤300N
Overall weight with clamped plates: 5.1kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 240mm, minimum 220mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 10.0 | 13.3 | 16.7 | 20.6 | 24.1 | 27.6 | 12.0 |
| Spring rate [N/cm] | 1590 | 1900 | 2210 | 2520 | 2830 | 3140 |
| Natural frequency [Hz] | 2.0 | 1.9 | 1.8 | 1.8 | 1.7 | 1.7 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 300 | 9.8 | 13.1 | 16.7 | 20.3 | 24.0 | 27.7 | 14.0 |
| 260 | 12.5 | 16.7 | 21.0 | 25.4 | 29.9 | 34.5 | 13.0 |
| 220 | 14.6 | 19.4 | 24.4 | 29.4 | 34.5 | 39.6 | 11.6 |
| 180 | 16.2 | 21.6 | 27.0 | 32.5 | 38.2 | 43.8 | 9.9 |
| 140 | 17.6 | 23.4 | 29.3 | 35.2 | 41.3 | 47.2 | 7.8 |
| 100 | 18.3 | 24.4 | 30.3 | 36.3 | 42.4 | 48.5 | 5.5 |
Rubber air springs are divided into three categories according to shape: capsule type, membrane type and sleeve type. According to the sealing structure, it is divided into four categories: pressure self-sealing type, rim clamping type, hoop sealing type and hybrid type.
This one is a bladder air spring. It can be used in many industrial equipment, such as presses, commercial washing machines, etc.
During transportation and storage, it should be kept as dry and cool as possible. At the same time, avoid exposure to the sun, prohibit contact with acids, alkalis, oils and other organic solvents, and keep away from heat sources.

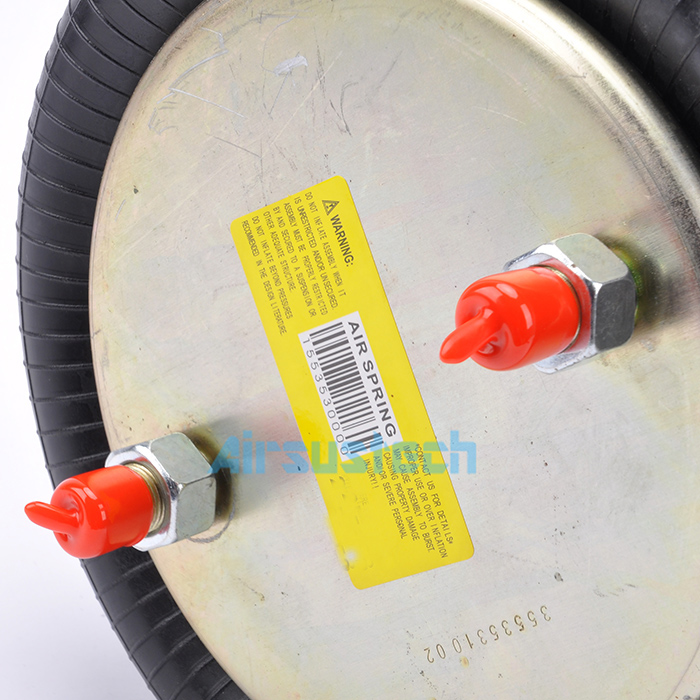

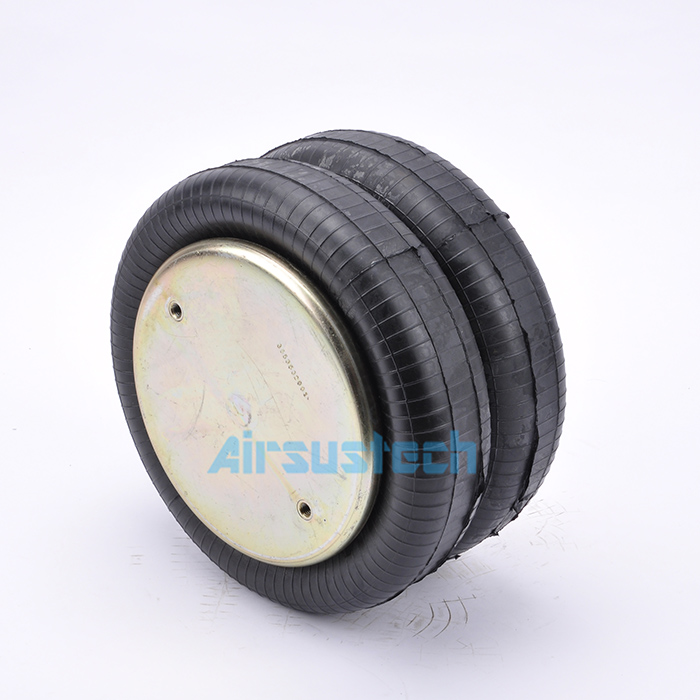

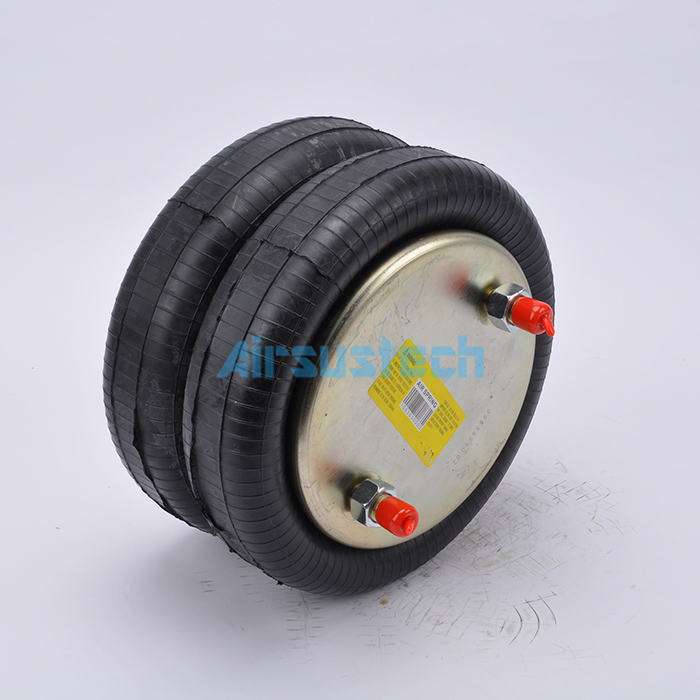

The related picture of 2B7550 air spring/pneumatic cylinder
